Applicable motor power range (Heavy Overload): Sinus H 2S: 0.4~2.2kW, Sinus H 2T/4T: 0.4~30kW
Protection degree: IP20 as standard. IP66/NEMA4X models available up to 22kW models
UL/CSA compliant. UL file number E195081
Graphic LCD keypad: Integrated in Sinus H 0034 model. Available as Option from Sinus H 0001 to 0030 models.
Built-in dynamic braking unit up to Sinus H 0030 model.
Input DC Reactor: Integrated in Sinus H 0034 model. Possibility of connecting an external DC reactor in Sinus H 0001 to 0030 models.
Side by Side Installation (Zero Stack)
Multi Keypad
P2P(Peer to Peer) Communication
2 Control modes: V/F and Sensorless Vector Control
Inbuilt RS485 serial port with MODBUS RTU protocol
Overload up to 120% for 60s (Normal Duty)
Overload up to 150% for 60s (Heavy Duty)
Overload up to 200% for 4s
Temperature: -10°C~40°C / -10°C~50°C Normal Overload/Heavy Overload
Maximum torque 180%
ZZ0176031
2,675.21€
Availability:
In Stock

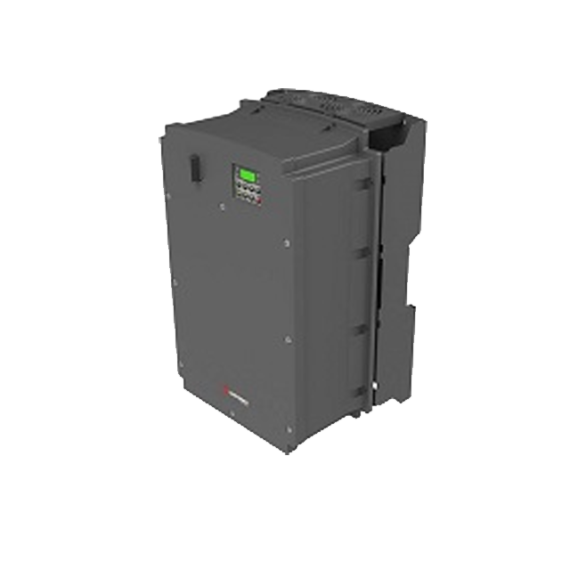

The Santerno’s Sinus H frequency inverter is manufactured in a range of product groups based on drive capacity and power source specifications. Santerno’s Sinus H frequency inverters have sensorless vector control or V/F inverter for AC three-phase induction motors.
