PMT-12V100W2BA

19.96

Availability: In Stock

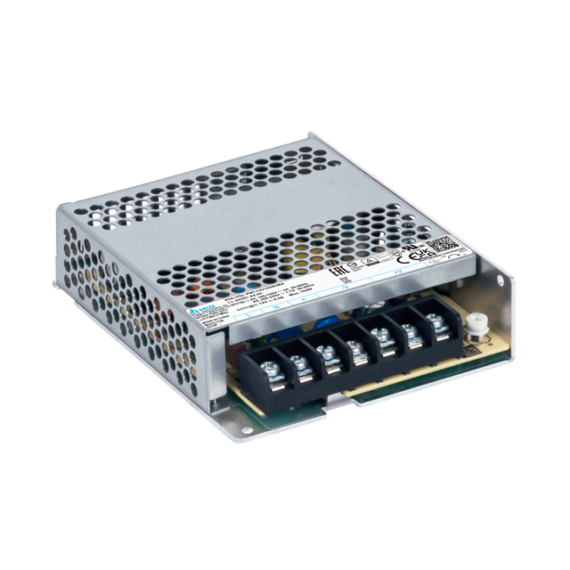

PMT 2 nd generation (PMT2) power supplies is designed in a low 30 mm profile and accepts universal AC input. The highly efficient
convection cooling construction can operate from -30°C to 70°C. The single output model is competitively priced for general industrial
and ITE applications. It complies to major safety approvals such as IEC/EN 60335-1, IEC/EN 61558-2-16, IEC 60950-1 & IEC/EN/UL
62368-1.

Avaibility: In Stock
Share:

• Household appliance approvals according to IEC/EN 60335-1,
IEC/EN 61558-1 and IEC/EN 61558-2-16
Universal AC input voltage range
No load power consumption < 0.3 W
Low profile design : 30 mm height
OVC III, Pollution Degree 3
Wide operating temp -30°C ~70°C (Support -40°C cold start)
Conforms to harmonic current IEC/EN 61000-3-2, Class A
High MTBF > 700,000 hrs per Telcordia SR-332
