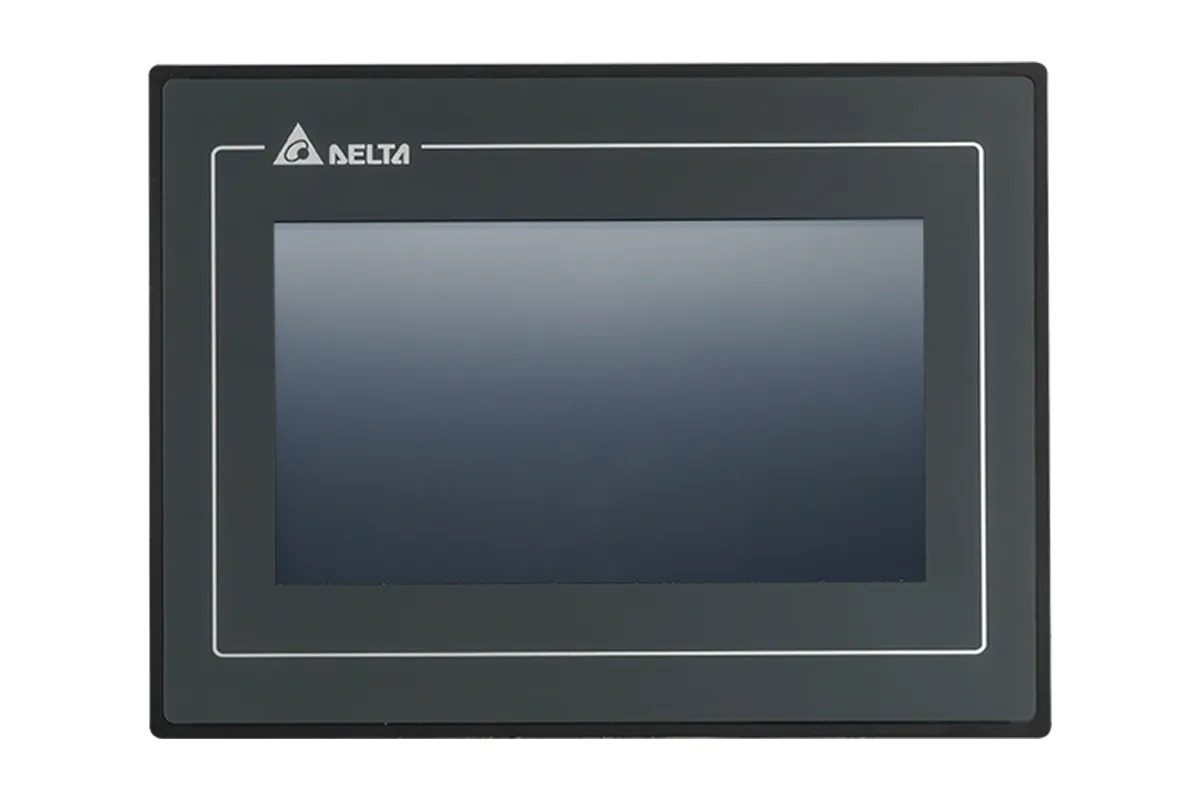

Delta DOP-107EV HMI touch screen 7" Ethernet (LAN)
7" Ethernet HMI (DOP-100 E type) with 3 serial ports and USB, all ports isolated. For machines connected to PLCs via Modbus TCP/EtherNet/IP or to the plant network.
DOP-107EV
- Screen size
- 7"
- protection
- IP65
- V DC
- 24
Price and stock
Çmimet përfshirë 18% TVSH
We help you choose the right model. Original Delta product.
Specifications
| Screen size | 7" |
|---|---|
| IP rating | IP65 |
| Ethernet (LAN) | Yes |
| Supply voltage | 24 V DC |
| Communication | Serial ports: 3: RS-232, RS-232/RS-485, RS-422/RS-485 |
| Dimensions (W × H × D) | 215 × 161 × 61.2 mm |
| Other details | Resolution: 800 × 480; Panel cut-out: 196.9 x 142.9 mm; Power consumption: max. 8.76 W; CPU / memory: Cortex-A8 800 MHz, 256 MB flash |
| Warranty | 1 year |
| Country of origin | Taiwan |
Features
- Resistive TFT touch screens, 4.3" to 10.1" in this list
- IP65 / NEMA4 front panel (DOP-100), 24 V DC supply
- 2–3 serial ports RS-232/RS-422/RS-485 for PLCs, drives and Modbus devices
- Ethernet on W, E, I types and DOP-300S (2 ports)
- USB host and USB slave; SD card on I-type and DOP-300S
- ARM Cortex-A8 800 MHz CPU (DOP-100), dual-core 1.2 GHz (DOP-300S)
- DOP-300S: MQTT, OPC UA, Modbus, EtherNet/IP and DIACloud platform
- CE / UL certified
Delta DOP HMIs are panel-mount touch screens for displaying and operating machines run by PLCs, drives and servos. The DOP-100 series comes in several types (basic B, Ethernet E/I, advanced W) from 4.3" to 15", while DOP-300S is the newer generation with a 24-bit display, two Ethernet ports and DIACloud connectivity. They are programmed with DIAScreen (formerly DOPSoft).
Other models in the DOP series
| Part number | Screen size | IP rating | Ethernet (LAN) | Supply voltage | Stock | Price incl. VAT |
|---|---|---|---|---|---|---|
| DOP-3S07S3E2 | 7" | — | Yes | — | On order | €453.00 |
| DOP-3S10S3E2 | 10.1" | — | Yes | — | On order | €720.00 |
| DOP-103BQ | 4.3" | IP65 | No | 24 V DC | On order | €185.00 |
| DOP-103WQ | 4.3" | IP65 | Yes | 24 V DC | On order | €256.00 |
| DOP-107BV | 7" | IP65 | No | 24 V DC | On order | €212.00 |
| DOP-107CV | 7" | IP65 | No | 24 V DC | On order | €250.00 |
| DOP-107EV | 7" | IP65 | Yes | 24 V DC | On order | €369.00 |
| DOP-110CS | 10.1" | IP65 | No | 24 V DC | On order | €379.00 |
| DOP-110IS | 10.1" | IP65 | Yes | 24 V DC | On order | €490.00 |
