Delta CliQ II DRP

Delta CliQ II DRP power supply 24 V DC 480 W 3-phase

Three-phase DIN-rail power supply with a 24 V DC / 20 A (480 W) output in a corrosion-resistant aluminium case. Its Power Boost function supplies extra current for starting heavy loads.

DRP024V480W3BN

V DC
24
W
480
phase
3~
A
20
Mounting
DIN rail

Price and stock

On order
€258.00incl. VAT

Çmimet përfshirë 18% TVSH

Request a quote

We help you choose the right model. Original Delta product.

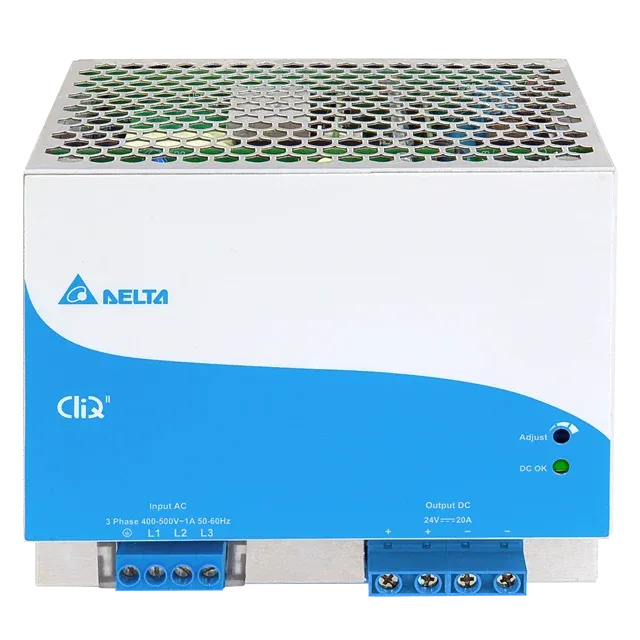

Delta CliQ II 3-phase DIN-rail power supply Open the photo full screen

Specifications

Specifications
Output voltage24 V DC
Power (W)480 W
Phase3-phase
Rated current20 A
MountingDIN rail
Input voltage3 × 320–600 V AC (3-phase) or 2 × 360–600 V AC (2-phase)
Overload capacityPower Boost: 150% for 5 s, 200% for 2 s
EfficiencyAt full load: > 91% @ 3 × 400/500 V AC
EnclosureIP20
Operating temperature-25 °C to +80 °C (cold start at -40 °C)
Dimensions (W × H × D)140 × 121 × 117.3 mm
Weight1.35 kg
Warranty1 year
Country of originTaiwan

Documents

Features

  • 3 × 320–600 V AC input (also two-phase)
  • 24 V DC output, 480 W (20 A) and 960 W (40 A)
  • Power Boost 150% for 5 s
  • Efficiency above 91–92%
  • Cold start at -40 °C, conformal-coated PCBAs
  • Aluminium case; IP20; IEC/EN/UL 62368-1

CliQ II is Delta's series of high-power three-phase DIN-rail power supplies in a corrosion-resistant aluminium case. Power Boost delivers 150% current for 5 seconds (the 480 W model also 200% for 2 s), useful for starting motors and capacitive loads. BN models are the versions without Class I Div 2 / ATEX approval.
